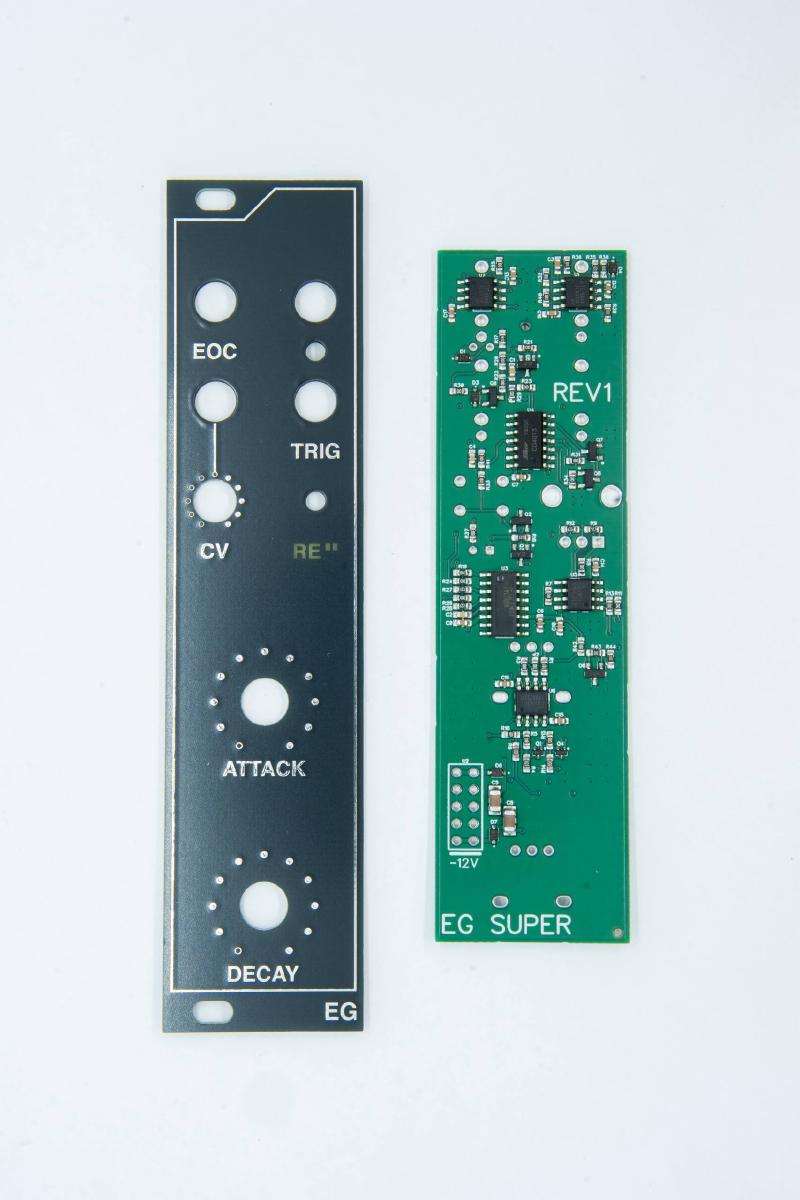

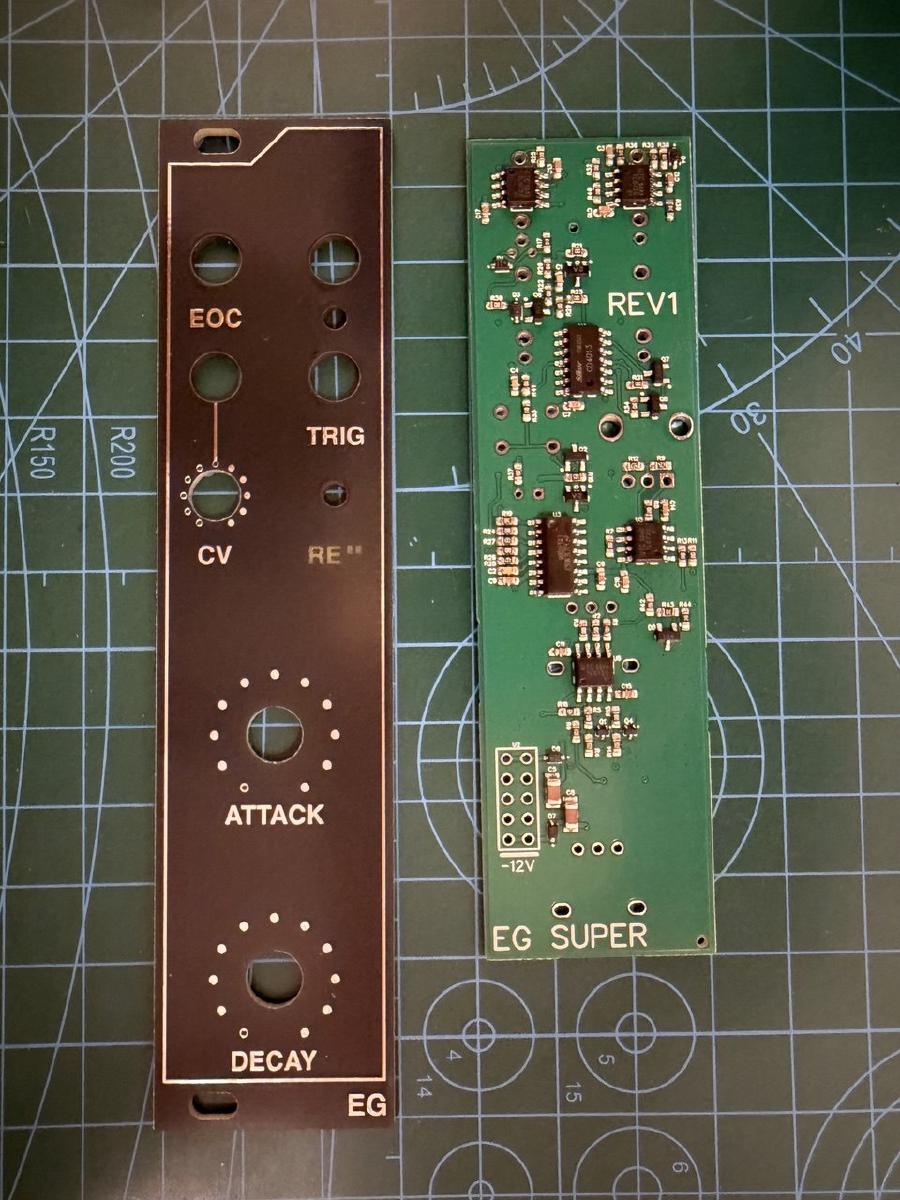

EG
All-analog voltage-controlled Attack-Decay envelope generator with End Of Cycle trigger output.
Configure Your EG
Specifications
- Format
- Eurorack · 6HP · 22mm deep
- Width
- 6HP
- Depth
- 22mm
- +12V draw
- 30mA
- −12V draw
- 30mA
- Shipping
- In stock — ships in 1–3 business days
- Design
- Super Synthesis (CC0 open source)
- SKU
- OSS-EG
2-year warranty · Seattle-based support
All analog voltage controlled Attack-Decay envelope generator with an End Of Cycle (EOC) trigger output. Lively and interactive. Tight transients, long swells, rubbery filter modulation.
I/O
TRIG — Trigger input. Rising edge fires the envelope.
EOC — ~5ms trigger output when envelope returns to 0V. Patch to TRIG to loop. Functions as a voltage controlled trigger delay.
RE — Toggles one-shot and re-triggerable modes. In one-shot mode, acts as a clock divider — 1/16 note triggers in yield 1/4 note envelopes out.
CV — Modulates overall envelope length through associated attenuverter. Max output ~6V.
Loopable, chainable, fast-as-you-need-it.
