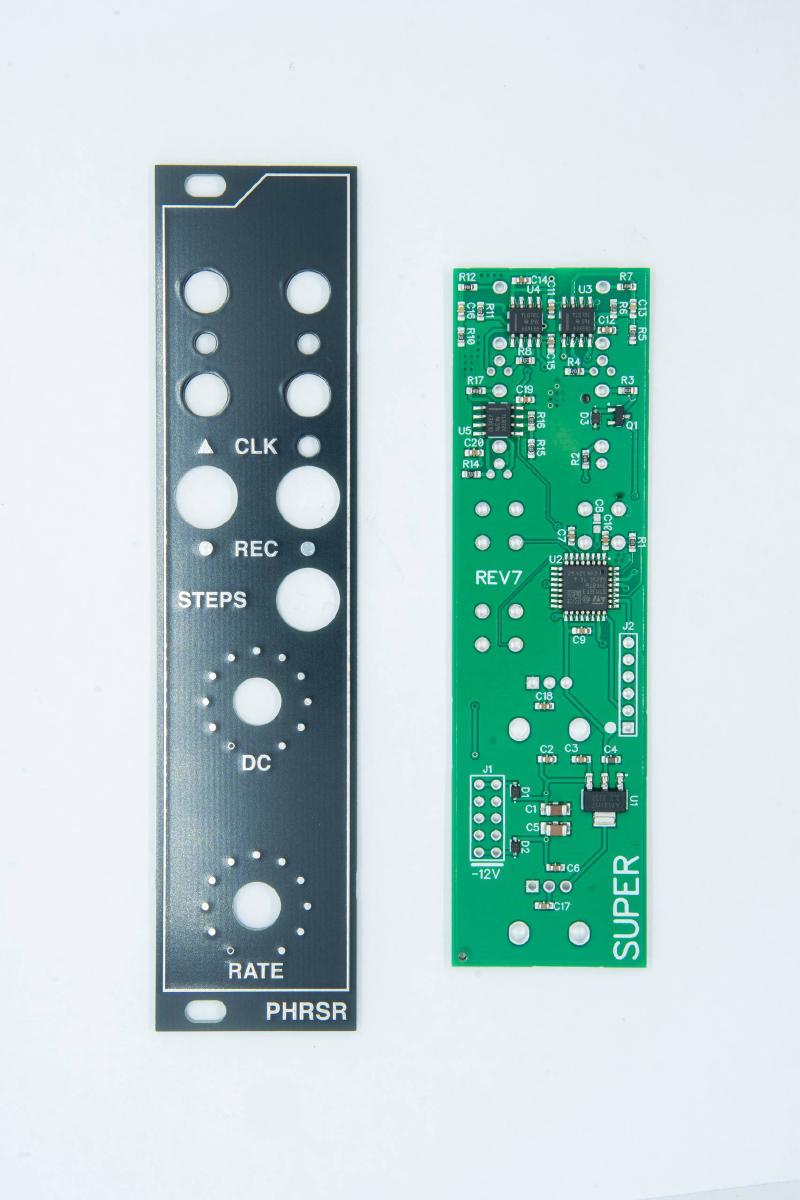

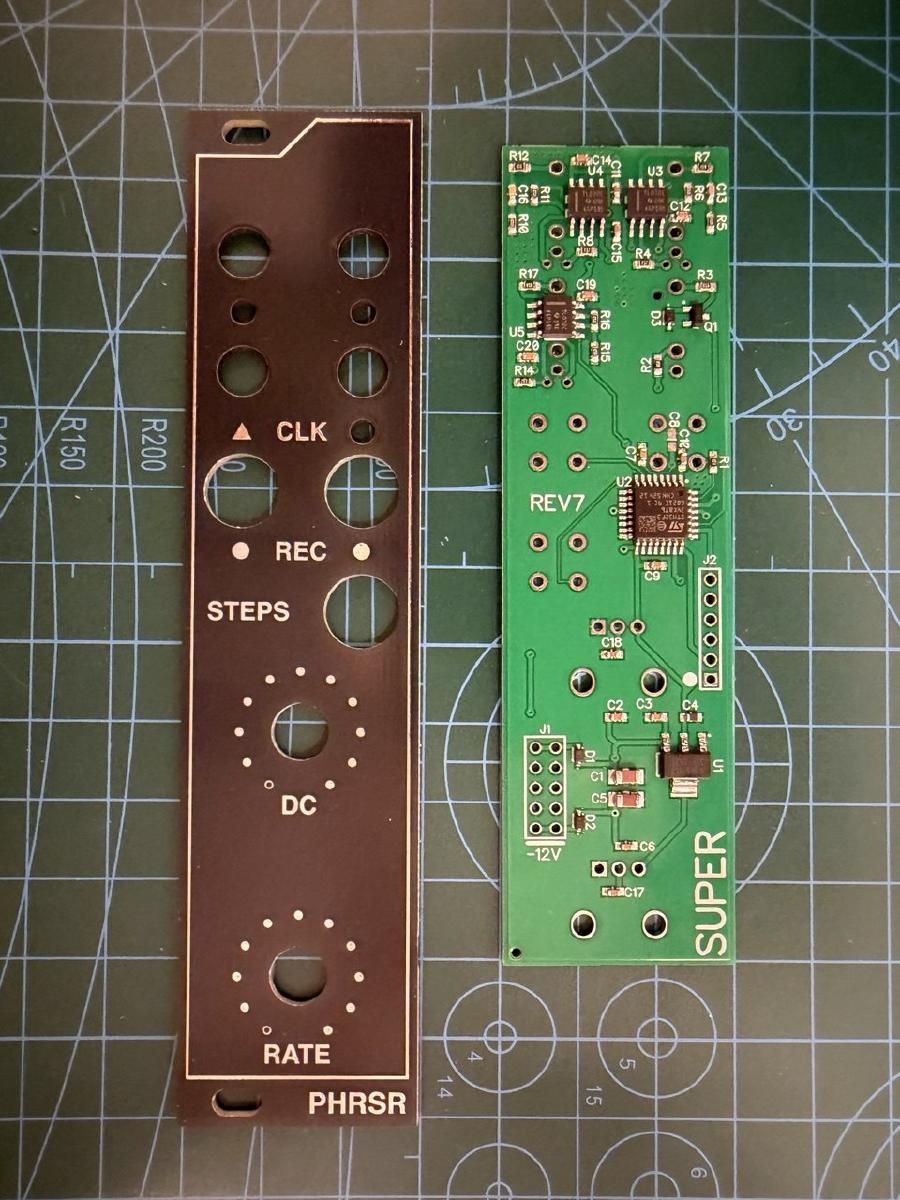

PHRSR

Two channel 1–16 step knob recorder / sequencer. Records knob movements, plays them back as CV. Independent step lengths per channel. Internal clock with hard-sync external clock input — external clock doesn’t override, it resets, enabling swing and syncopation. No menus, no hidden functions.

I/O

CLK — Rising edge increments step. Pulse output at each increment.

DC — Value written into sequence.

REC — Overwrites current step with DC value. Hold STEPS + REC to set sequence length.

Rate — Internal clock rate.

Channel A left, Channel B right.

Note: red stripe on power cable goes DOWN. -12V is unmarked on header.
