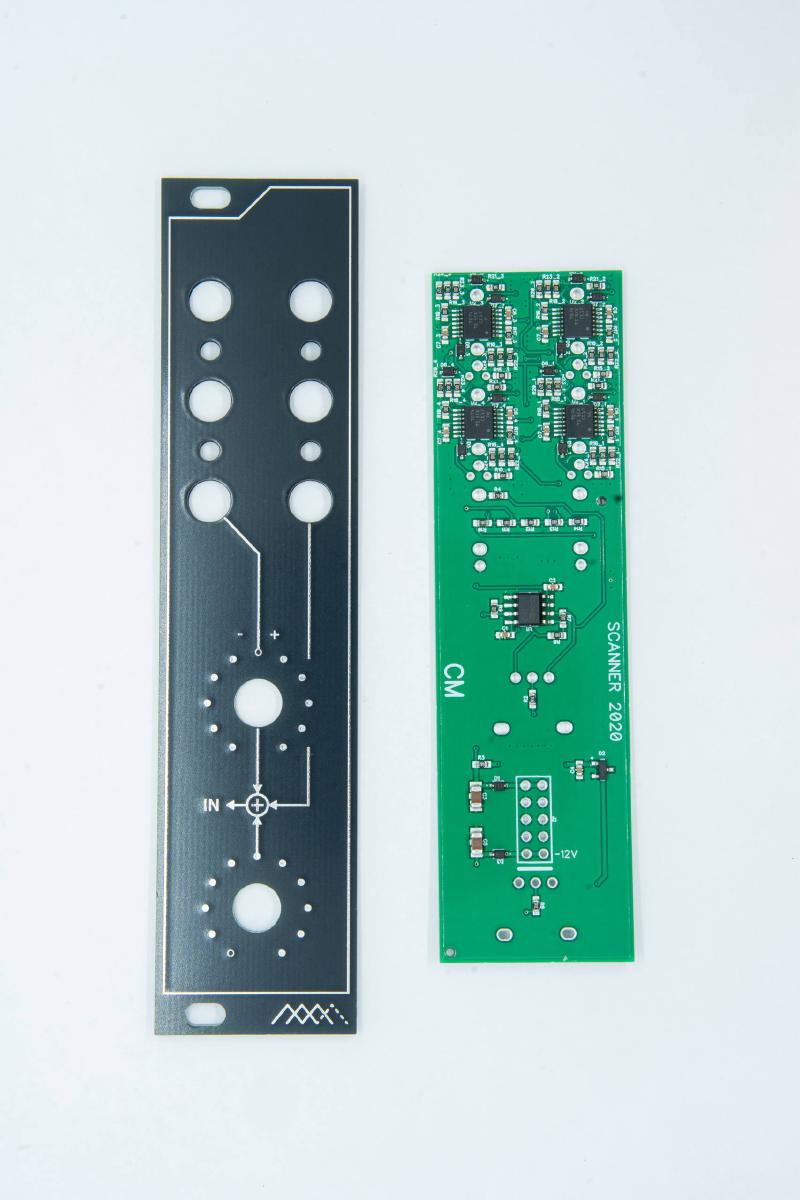

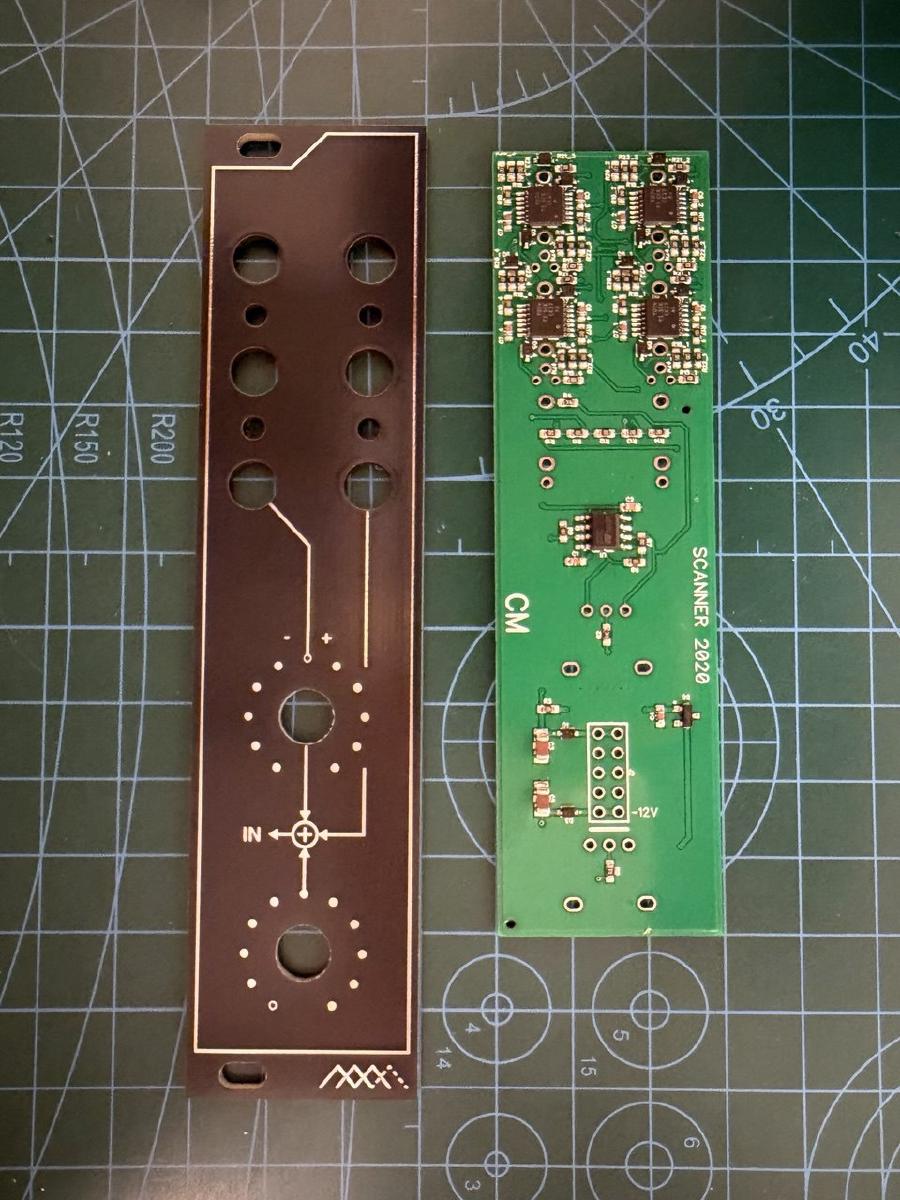

SCANNER
Takes 0–5V in, outputs four overlapping triangular CVs. Feed it a saw, get quadrature triangles.
Starting at $50
Configure Your SCANNER
Total
$50
Specifications
- Format
- Eurorack · 6HP · skiff-friendly
- Width
- 6HP
- Shipping
- In stock — ships in 1–3 business days
- Design
- Super Synthesis (CC0 open source)
- SKU
- OSS-SCANNER
2-year warranty · Seattle-based support
Takes a 0–5V input and outputs 4 overlapping triangular CVs. Input is the sum of the bottom knob and two input jacks — left through an attenuverter, right straight in. Outputs arranged in a square, clockwise from lower-left. Drive 2–4 VCAs for a crossfader. Feed it a saw, get quadrature triangles. Any input waveshape comes out a triangle.
